WSDG Covers May 2019 Volume of Sound & Video Contractor Magazine. Sound Studies, featuring the latest WSDG Educational recording studios around the world.

By CYNTHIA WISEHART

(Click on each Project’s Title to View our Project Pages!)

Montgomery County Community College — Blue Bell, PA

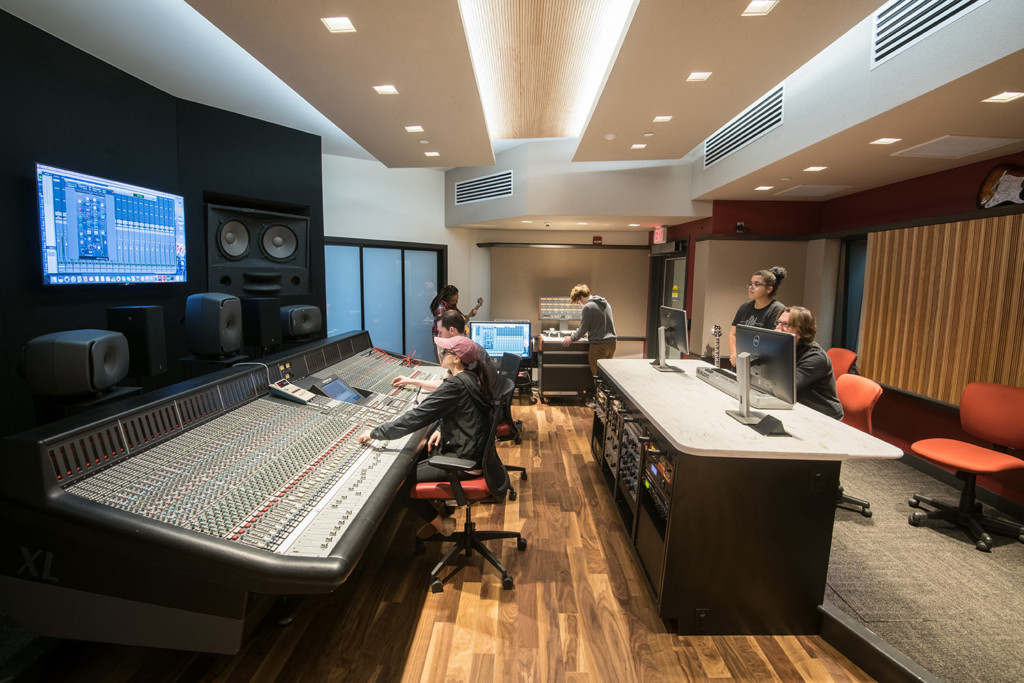

Montgomery County Community College in Blue Bell, PA brand-new Recording Studio for their Digital Music Technology course. Designed by WSDG. Architectural acoustics and media systems engineering. Control Room with MCCC students.

“Nothing in the media world is silent.”

John Storyk states the obvious without irony. But though the need for audio education may have always been obvious, Storyk sees a wave of building in world-class audio facilities at universities and colleges throughout the world. As a founding partner of Walters- Storyk Design Group (WSDG), he’s been deeply involved with this trend, both as a studio designer and an educator.

Trained as a musician and architecture student at Princeton and Columbia, Storyk is pleased to see his interests converging; schools want studios that are modern, attractive, and cutting edge; that’s an advantage in a competitive education market. You’ll see concert-level pianos and big desks and increasingly natural light whenever possible. Perhaps best of all, schools want the facilities to be visible. Glass and clear diffusers are in style, and Storyk couldn’t be more pleased to build windows. “These facilities are in use 24/7 on campus. Both students and tours want to be able to view into the rooms and beyond to other corridors and to daylight,” he explains. “Glass is no longer the enemy in these studios, but rather a friend. It’s fun to look directly into the control room from the wall. It makes people feel good. Parents like to see the future.”

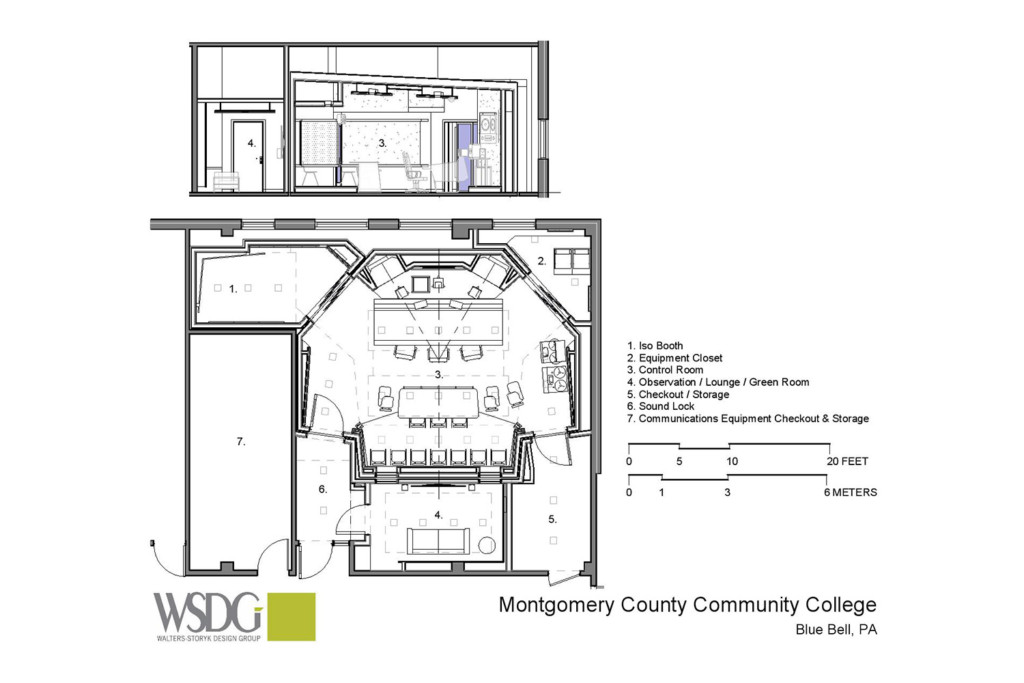

Montgomery County Community College in Blue Bell, PA brand-new Recording Studio for their Digital Music Technology course. Designed by WSDG. Architectural acoustics and media systems engineering. Presentation drawing.
WSDG’s 1000 sq. ft. teaching/studio/mixing suite at Montgomery County Community College is part of the college’s expanding Digital Music Technology course. It encompasses a 450 sq. ft. fully isolated CR / Mixing Room, supported by a 100 sq. ft. Iso Booth, a 70 sq. ft. sound lock, a 110 sq. ft. green room and a 150 sq. ft. storage/equipment closet. It is outfitted with an SSL XL 9056K console, custom Augspurger speakers, and a Genelec 5.1 Surround system.

Drexel University — Philadelphia, PA

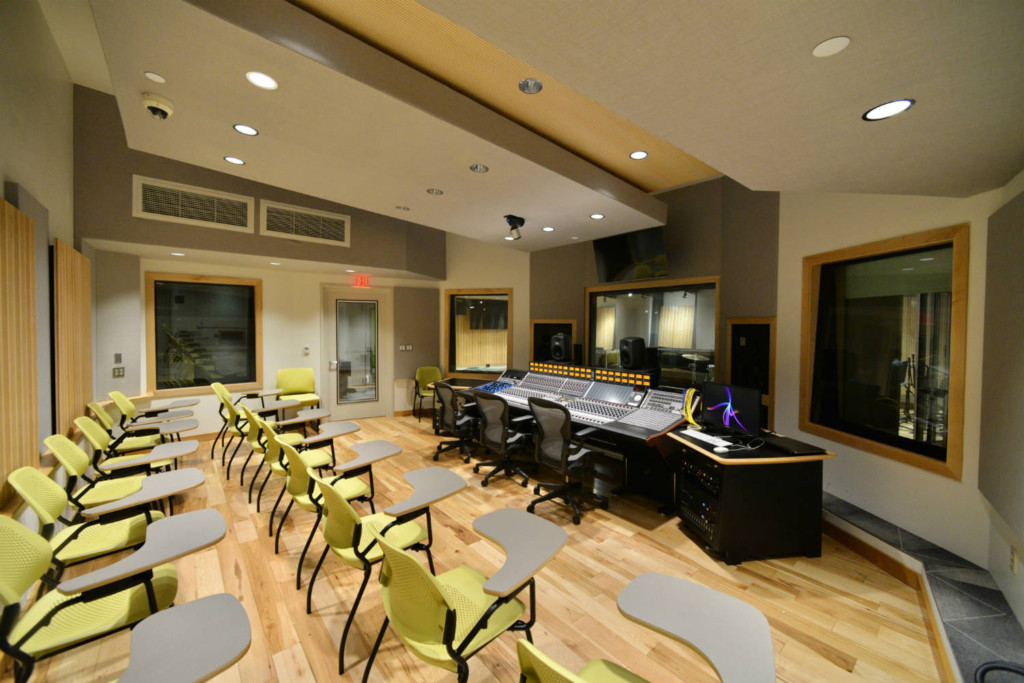

Drexel University in Philadelphia, PA is one of America's 15 largest universities. Their brand-new recording facilities, designed by the WSDG team, expands their music and recording program. Control Room Side View

In a nearly 50-year career, Storyk and WSDG have designed and constructed close to 3500 world-class audio and video production centers of all kinds, starting with Jimi Hendrix’s Electric Lady Studios and encompassing personal studios for platinum recording artists, broadcast facility projects for major networks and radio stations, corporate media and conference rooms, clubs, stadiums, and theaters. The WSDG portfolio encompasses a wealth of world-class education facilities, including one of the highest profile audio education facilities in the country, the 23,800 sq. ft. professional complex for the Berklee College of Music in Boston, where Storyk is adjunct professor of Acoustics and Studio Design.

Now, 2019 is shaping up to be a record year for new audio education facilities. As with Medicine, Law, Physics and other demanding fields, colleges and universities are making substantial investments in real estate, faculty, dedicated teaching programs and state of the art facilities to prepare next generation pro audio specialists for work.

Storyk explains that while professional studios are often driven by ROI and responding to practical demands, for schools, cutting-edge is a competitive advantage. “Schools are there to prepare students to work in the real world,” Storyk emphasizes. But often times, he says, schools ask for a “high-end” version of that real world. “Schools are regularly setting up multi-speaker environments, at least two sets—main monitor and midfield, including 5.1, 7.1, 12.1 and beyond. These are configurations that students may not immediately see when they get into the commercial world, but they are preparing these students for tomorrow’s audio reality. I submit that if you want to look at the future, hang out at the top audio schools.”

Storyk describes a range of challenges that present in educational audio design. Control rooms often have to double as classrooms; multiple equipment configurations are quite common; ADA compliance is the norm.

“There’s been an interesting conversation about whether schools put in larger-format, traditional setups which are expensive, big, very sexy and have a lot of marketing appeal? Or do they put in a system that is probably more likely what students are going to see in the commercial world which would be no consoles, pure workstations. It’s one of the first questions we ask.

“Large format consoles—which in most instances students will not see upon graduating—often present the best systems for teaching fundamental audio philosophy and production techniques. The last thing anybody wants is someone coming out of school knowing how to operate computers but not understanding audio, because the first time there’s an audio problem, they won’t know how to solve it. That’s because they never really learned the process. Most of the better audio schools and departments have at least one analog console. They know most students will work on workstations in the digital domain, but analog audio education is often the best way to understand audio.

“Somewhere in the mix (excuse the pun) there will be a traditional audio chain, so that all the aspects, from inputs to compression to equalization—how that all relates to what you hear—can be taught. At the same time, there’s a requirement that schools set up to mimic what students are going to see in the real world. Big schools have a pretty easy balance—because they have enough rooms to do both. Smaller programs have a much harder decision to make. The hybrid consoles such as SSL Duality and Neve Genesis have both gone a long way to solving that problem with both analog and digital. And then we tend to see three to four kinds of speakers, depending on size needs and philosophy.

“The first question we always ask is, ‘How many students need to be in the control room? And then we ask: ‘What’s your console philosophy?’ Once those two issues are resolved, everything else starts to fall into place.”

The other driver is knowing what kind of education is in demand in the community, so Storyk and the WSDG team ask a lot of questions. And finally, as is always the case, it’s people—the school’s chief engineer or lead educators will have personal taste and philosophies that come into play. “Somebody at some moment in time has to put the signature on the purpose of the room,” Storyk says. “That person is already in the school; they know enough to know what they want. What they usually don’t know is how to design the room, create practical acoustic solutions and get the facility built. We always present options. There is no single right way to accomplish these goals. I suspect this is what I like about design. Like music, there are many styles and formats that can come from only 12 notes! Designing school facilities keeps us very current in all technologies associated with audio.

“There’s never an education project that doesn’t have a budget crunch. The job of the consultant and studio designer is to listen to what the stakeholders in the school say and look at what is going on in the school environment. Do you really need a 30-person live environment or would two small six-person edit rooms be more appropriate? Package options for them. Do more listening than talking. And remain smart. Stay current.”

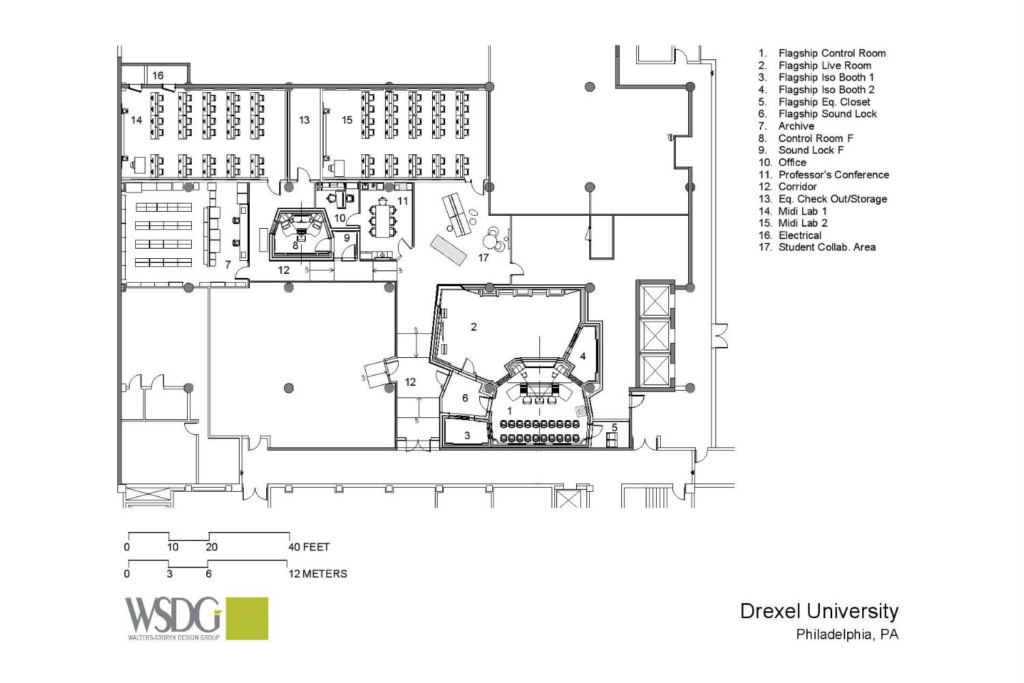

Drexel University in Philadelphia, PA is one of America's 15 largest universities. Their brand-new recording facilities, designed by the WSDG team, expands their music and recording program. Presentation drawing 1
With over 24,000 students, Drexel is one of America’s 15 largest universities. Allen Sabinson, Dean of Drexel’s Westphal College of Media Arts & Design recognized the need to expand the popular recording, mixing, production facility to effectively support the university’s nascent RAMP (Recording Arts & Music Production) and Music Business programs, and to house the Drexel Music Archive of over 6000 master tapes acquired from Philadelphia’s landmark Sigma Sound studios. The $4.5 million, 10,000 sq. ft. One Drexel Plaza Building provided a superb blank canvas for the new audio education facility. As the hub of the new complex, the facility incorporates their flagship studio (1,300 sq. ft.), which featured a corner window providing views from the student collaboration area into the main recording room, a (140 sq. ft.) post-production control room, (2) midi labs (1,000 sq. ft. each), a spacious student lounge and a unique (800 sq. ft.) master tape archive suite. Customized acoustic treatments and fully isolated (floating) environments support enhance the learning environment; featured equipment includes a Neve 5088 console, Genelec 8040 and Avantone Mixcube monitors, and Xilica 4080 speaker processing.

Zhejiang Conservatory of Music — Zhejiang, China

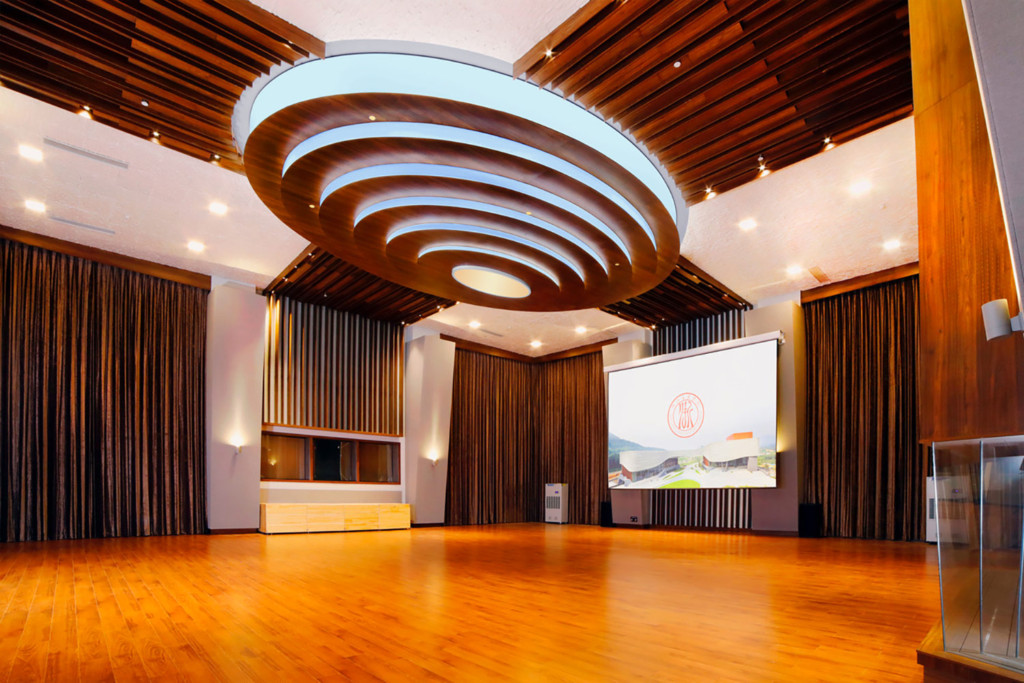

Zhejiang Conservatory of Music in Hangzhou, East China commissioned WSDG to create an important addition to this extraordinary institution, a 21st Century Music Production & Education Complex. Live Room Side And High View

Once the room is built, and it comes to educating the students, it’s a mix of art and science. “Most schools seem to require that students have independent audio projects. This of course means that our facilities have to be state of the art, but useable by students. It also means they have to be durable! Practice always makes perfect. It could take a lifetime before you really learn and understand compression. Even longer to learn how to deal with clients.

“Different schools have different programs. For instance, at Berklee College of Music, you can only enter as a musician; you have to audition as a musician. Almost everybody in the engineering wing is a musician. In other schools, audio or engineering is an elective or a subcourse.

How does Storyk see the future for these students? “There is a pro audio education boom going on because there are a lot of new emerging jobs in this field. A lot of students go to schools because initially they want to be engineers; then they learn that those positions are very rarified, but there are many other places to apply their audio and mixing skills. Wherever there is media–podcasting, advertising, museums, churches, radio stations, theaters, even cruise ships…there is audio! The data supports it—a high percentage of graduates are getting jobs. There’s a lot of opportunity. I believe that’s why sooner or later the schools recognize the wisdom in making sure that graduates have a solid background in fundamental audio—thus the argument for analog consoles.”

How does that apply to the future of audio in an iPhone-driven world? “Well the good news/bad news is people are listening to music all the time. They may be listening to music that is not as sonically sophisticated as it could be. But these phones are sounding better and better every day. The subscription services are constantly improving their quality. Headphone and ear bud manufacturers are also meeting this challenge. Do we want a small world of very high quality music or a large world of sonically less than perfect music, but one that is striving to be better—one that is democratizing audio?

“I would take democratization of the content over the quality any day. Not everyone wants to hear that. But I’d rather have billions of people listening to some music and let the quality come up to meet that demand. It’s happening. Already immersive sound is ready to be delivered on headphones. When a billion people want to listen to immersive audio we will get the last laugh. And the folks leading us in this moment will be today’s students.”

The enormous Zhejiang Conservatory of Music (ZICM) in Hangzhou, East China is set on a picturesque 100-acre campus with nine concert halls, 102 rehearsal halls, 842 practice rooms and six small studios to support 5000 full-time students with professional educational programs on all facets of music, recording and technology. The latest addition is a dramatic music production and education complex in a newly completed 8000 sq. ft. two-story building. WSDG’s entire 50+ member creative and technical design team contributed to the collaboration. The 3200 sq. ft. live recording studio features a soaring 26 ft. high ceiling that provides architectural distinction without interfering with first-class recording. WSDG’s Basel, Switzerland and Berlin, Germany offices developed sophisticated 3D room modeling and electro acoustical surface predictions, in order to create this extraordinary acoustical environment. Among the design elements developed for the room is a large, iconic oval ceiling cloud that serves as both an acoustical treatment and a lighting element. Each of the expansive room’s four walls was fitted with a 26-foot-long absorbent curtain hung from heavy-duty, silent, motorized tracks, providing as much as a 50% modification of average reverberation time. The 650 sq. ft. Control Room provides students with clear lines of sight to the SSL mixing console station; a panoramic floor to ceiling CR window looks into the live room.

Rensselaer Polytechnic Institute (RPI) — Troy, NY

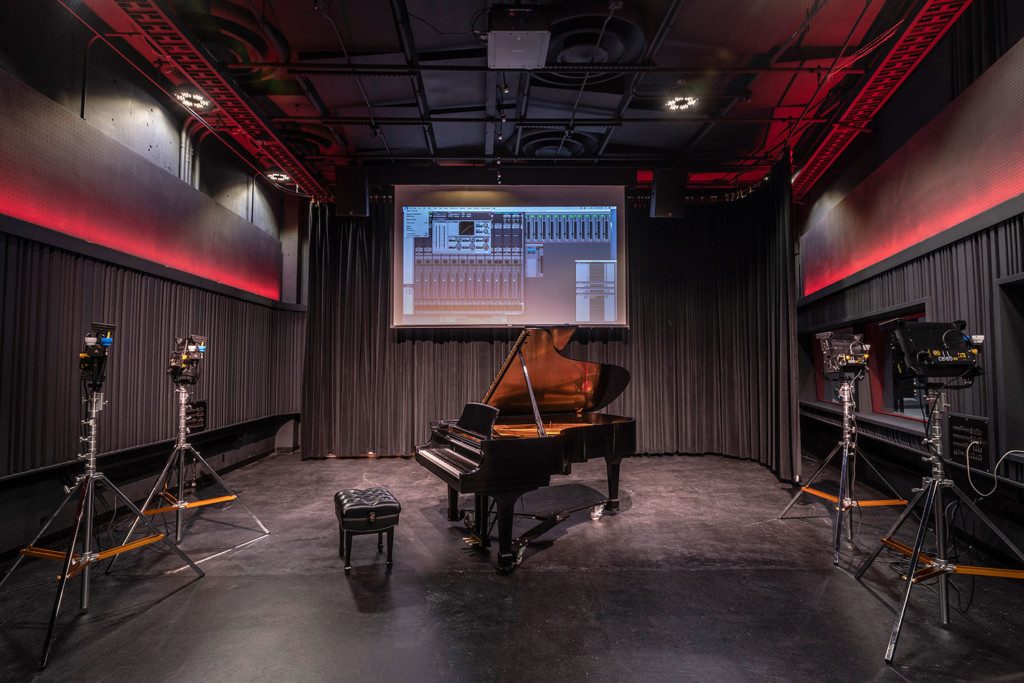

Rensselaer Polytechnic Institute (RPI) brand new state-of-the-art audio production facilities, designed by WSDG - Live Room featuring Grand Piano and Film Scoring Screen.

Rensselaer Polytechnic Institute (RPI) is the world’s 3rd highest ranked research college. WSDG designed and oversaw the construction of a fully immersive 3D audio/video/production, mixing and editing complex to advance the creation, performance and production of 3D immersive audio and video content. Special attention was focused on the facility’s variable acoustic properties, to compensate for the ‘deader’ tracking environment required by immersive production techniques. Existing one-inch fiberglass wall treatments were removed in favor of low-frequency pressure absorbers in the lighting grid, along with added diffusion around three sides of the room, as well as reusing the existing curtain system. The project also significantly extended connectivity to (and collaboration with) the university’s Experimental and Performing Arts Center (EMPAC) and Cognitive Immersive Systems Lab (CISL). The new HASS Media Studio is a complete renovation of an existing 1700 sq. ft. space includes a 1000 sq. ft. Audio Recording/Production Studio, a cutting edge 300 sq. ft. Audio Control Room, a 100 sq. ft. Iso lab, a 160 sq. ft. Video Control Room and a 90 sq. ft. AV Lab. With 16-ft. ceiling height, and sufficient space for ambitious audio and video programming creation, the complex utilizes dark fiber optic connectivity previously installed between RPI’s EMPAC and DCC buildings, to allow for audio/video connectivity via networks including MADI and Dante, as well as a NewTek NDI network to support video capture, control, and post. Advantages will include the ability to use the EMPAC Concert Hall as a sound stage with audio/video control in the DCC and, enable a live performance at the DCC to be viewed on multiple EMPAC screens.
